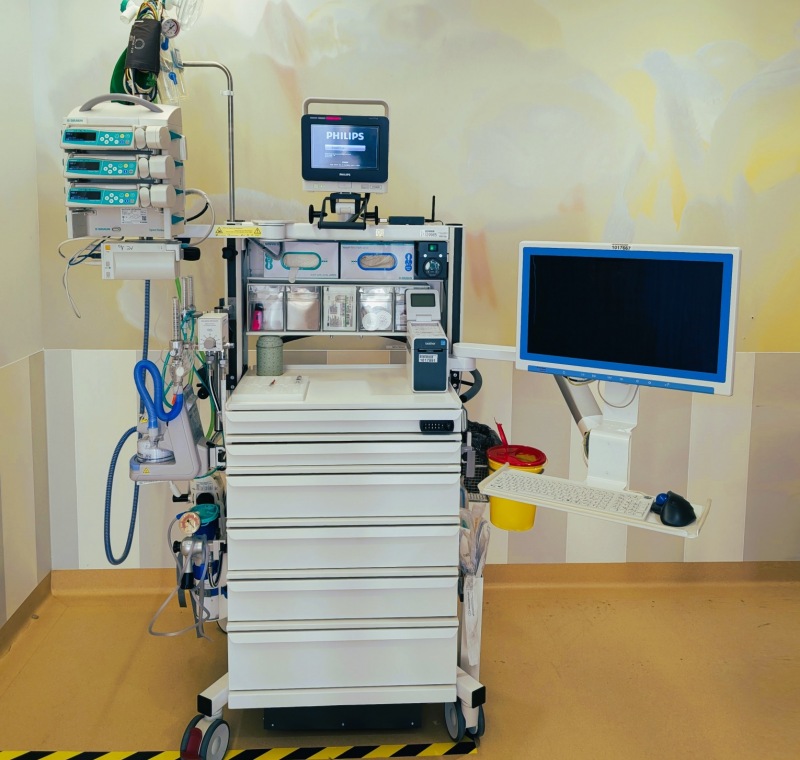

Motorized Sedation Cart

The sedation cart is used in various departments and driven throughout the hospital. The Crozz three 650 sedation cart is 100% motorized with the motor system that has been used for our endoscopic emergency carts for years. With this proven motor system, a fifth powered wheel is located in the middle of the trolley on the ground, allowing it to be easily maneuvered by one person over long distances. This helps relieve strain on the back and shoulders during maneuvering.

Currently, hospitals are facing significant staff shortages due to high rates of absenteeism and turnover. The motorized sedation cart helps prevent injuries and reduces sick leave. Moreover, driving this trolley is a pleasure and contributes to the job satisfaction of the sedationist, which in turn can reduce staff turnover.

Curious about our sedation cart? Here are our advantages:

✔️ 100% electrically powered

Faster on-site movement without straining the shoulders and back. Easily movable by one person.

✔️ Customized in consultation with the user

Q-check holder, opiate drawer with code lock, and foldable arms for patient monitors, syringe pumps, panel PCs for HiX, etc.

✔️ Maximized ergonomics

Can be used standing or sitting, with height-adjustable screens. Smooth-rolling wheels and ergonomically shaped push handles.

✔️ Compact

Optimized for workspace storage and equipment placement. Unfold the arms on-site and get to work immediately.

✔️ Lean layout for the trolley

Uses the 5S Lean method for organizing drawers and the trolley, minimizing waste such as time spent searching and misplacing items. No excess inventory.

✔️ Electrical safety compliant with NEN/EN/IEC 60601-1

Can be equipped with a medical isolation transformer with 12 sockets and grounding points (EQP) for electrical connections to all equipment. Just plug it into the outlet!

Choose convenience and efficiency with our sedation cart—the ideal solution for your medical setting! Feel free to request a quote or a demo!

The Crozz Three 2G 650: A Modular Solution for Safe Sedation

The Crozz Three 2G 650 is a robust and extremely manoeuvrable medical device cart, based on a modular concept. The cart has been specially developed as a mobile workstation where both equipment and work supplies can be organized efficiently. The Crozz Three combines maximum safety, optimal ergonomics, and advanced technology in one compact solution.

One of the most important application areas for the Crozz Three 2G 650 is sedation. Through our years of experience as a manufacturer, we have created a solid foundation in the Crozz Three that incorporates user feedback and the latest medical developments. With hundreds of available accessories, the cart can also be fully adapted to the specific needs and protocols of your department.

Assembling the Ideal Sedation Cart: Points of Attention

To assemble a safe and efficient sedation cart, it is essential to carefully consider how equipment and work supplies are organized. With its modular design and wide range of accessories, the Crozz Three 2G 650 offers the flexibility to fully align the cart with your workflow. Below you will find the most important aspects and options for configuring a sedation cart:

Storage of Work Supplies

To organize work supplies efficiently, multiple drawers of different heights can be placed. With the available drawer dividers, you can create a clear layout that can be fully configured to your wishes. For small materials, there are tilting bins that can be placed in the stand above the work surface. These transparent bins offer a direct overview of the available stock. The bins are also easily removable and cleanable, which contributes to optimal hygiene.

Storage of Medication

Medication, including opiates, is usually stored in a sedation cart. To make this possible in accordance with regulations, one or more drawers can be equipped with an electronic code lock. This ensures safe storage and limits access to authorized personnel.

Preparation of Medication

A Q-check is often used to prepare medication. A holder on a swivel arm is available specifically for this purpose, which allows the Q-check to be positioned above the work surface. This keeps the work surface free and makes the medication more easily accessible.

Placement of Equipment and Ergonomics

For good readability and easy operation, the patient monitor is best placed high on the cart. For data processing, a PanelPC, in which the computer is integrated into the screen, can be attached to a height-adjustable monitor arm. This creates an ergonomic workstation. Various mounting points are available for attaching equipment such as syringe pumps, vacuum pumps, or label printers.

Suction System

For the suction of mucus, a suction system with a vacuum pump and suction jars is mounted on the cart. The jars can be attached to DIN rails on the outside of the cart. These rails are attached to the outside of the cart so that in the event of any leaks, the inside of the cart remains clean and dry.

Gas Cylinders

For ventilation, gas cylinders (usually 2 or 5 liters) are placed low on the side of the cart using special cylinder holders. This guarantees a safe and stable attachment and contributes to optimal weight distribution.

Motorized Drive (Motor Drive)

As sedation carts are moved throughout the hospital and are often heavily loaded, the optional electric drive is an important feature. The motor drive significantly reduces the physical strain on staff and ensures that the cart can be easily and nimbly manoeuvred.

The above mentioned applications are configurations based on our standard medical carts. These standard carts are modular in design, allowing to create any configuration according to customer specification. This means that the displayed cart configurations can be adjusted as desired. This includes for example removing or adding a shelf, bottle bracket or other components. In case a desired item is not part of our standard product range, it is also possible to deliver custom made parts. In this case we can design the required item, and produce this design for you. Please contact our sales department to discuss the possibilities.

Composition

Geen samenstelling beschikbaar, kies een andere afbeelding.

The above selected configuration is composed of selected items listed below. Please consult the available documentation under the tab "Downloads" for more information. Feel free to contact us, we will be happy to assist.

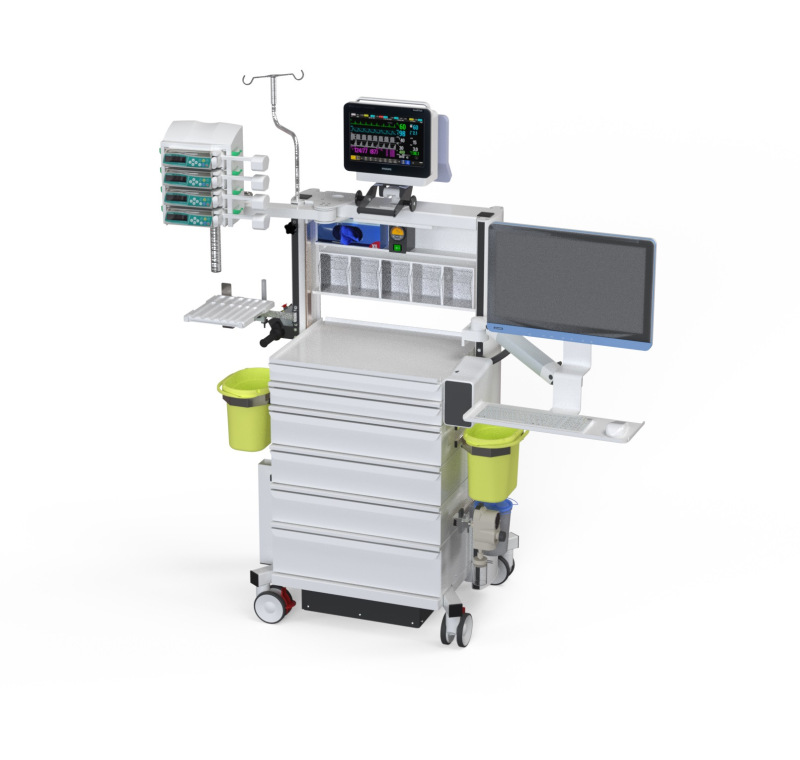

Crozz three 2G 650 - Gemotoriseerde Sedatiekar
- Motorized Sedation Cart
Crozz three 2G 650 Sedatiekar met motor
- Motorized Sedation Cart
No.
Article
Description
Amount
7
S15.08.00
Lay-out kit for 650x450 drawer, system height 55mm, internal drawer dimensions 396x610x111 (LxWxH)
8
S65.56.00
Drawer 650x450x90mm (WxDxH), low drawer with soft-close
9
S16.10.00
Standard runner mounted on the end side of the side casing, single-sided, L=250mm
10
S15.03.00
Lay-out kit for 650x450 drawer, system height 55mm, internal drawer dimensions 396x610x111 (LxWxH)
11
S15.06.00
Lay-out kit for Crozz three 1000 worktop drawer 650
15
R95.56.98
Reel for cables/hoses
16
S16.82.00
Catheter holder for DIN-rail mount
18
S18.60.00
Countertop 50mm with Philips connection
19
R07.43.00
21
R07.66.00
24
S03.03.00
Digital code lock for Crozz three worktop drawer
25
S16.81.06
Holder with DIN-rail clamp for Sharpsafe 4L and 7L needles container
26
S15.08.00
Lay-out kit for 650x450 drawer, system height 55mm, internal drawer dimensions 396x610x111 (LxWxH)
